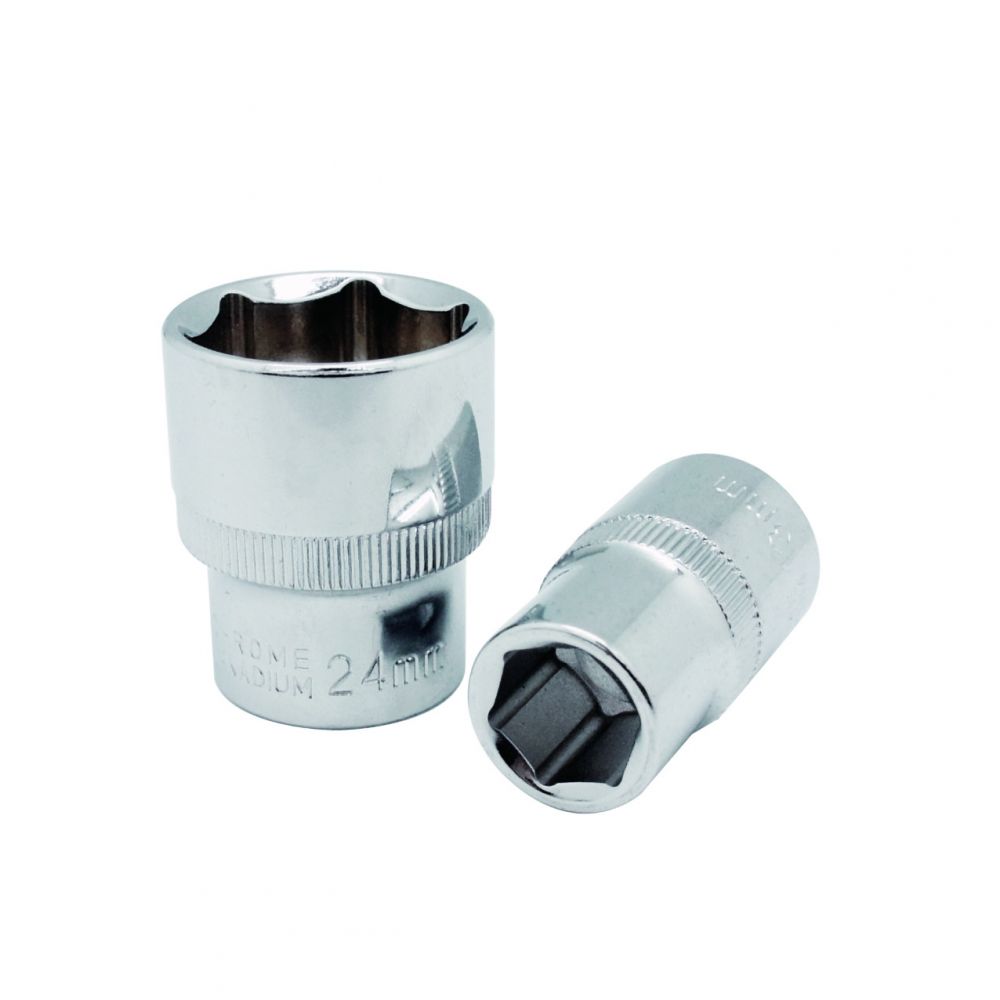

1/2" Dr. Socket

  • 1/2" Dr. Socket
03S1208VMK
    • Finish: Mirror
    • Material: CR-V
    • HRC: 45±3
    • Knurling: 3mm
Inquiry
  • SPECIFICATION
Finish:Mirror   Material:CR-V   HRC: 45±3   Knurling: 3mm
Item Size mm D1 ±0.2mm D2 ±0.2mm Length ±0.2mm
03S1208VMK 8 21.8 13.8 38.0
03S1209VMK 9 21.8 14.3 38.0
03S1210VMK 10 21.8 15.5 38.0
03S1211VMK 11 21.8 16.7 38.0
03S1212VMK 12 21.8 18.0 38.0
03S1213VMK 13 21.8 19.0 38.0
03S1214VMK 14 21.8 20.3 38.0
03S1215VMK 15 20.8 21.8 38.0
03S1216VMK 16 21.0 21.8 38.0
03S1217VMK 17 21.8 23.9 38.0
03S1218VMK 18 23.6 25.8 38.0
03S1219VMK 19 23.6 25.8 38.0
03S1220VMK 20 24.0 27.8 38.0
03S1221VMK 21 24.0 27.8 38.0
03S1222VMK 22 26.0 29.8 38.0
03S1223VMK 23 28.0 31.8 38.0
03S1224VMK 24 28.0 31.8 38.0
03S1225VMK 25 28.0 33.8 38.0
03S1226VMK 26 28.0 33.8 42.0
03S1227VMK 27 33.0 35.8 42.0
03S1228VMK 28 34.0 37.7 42.0
03S1230VMK 30 34.0 39.6 42.0
03S1232VMK 32 38.0 41.8 43.0
